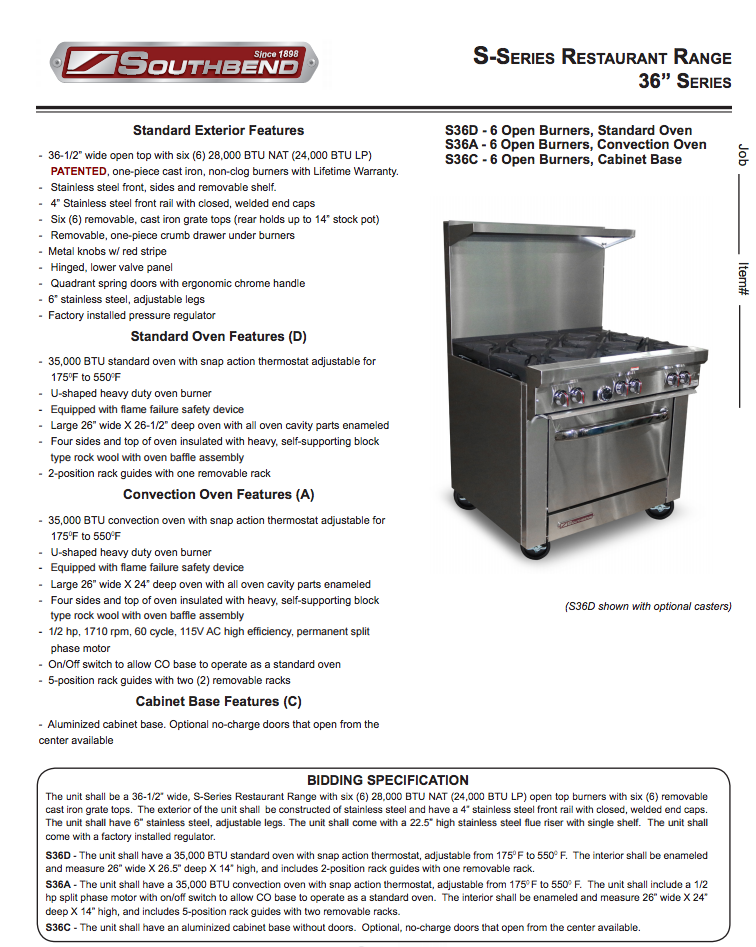

The Southbend S36D S-series range comes with six 24,000 BTU, no-clog burners that have crumb trays underneath to catch grease and debris to keep the unit clean. Each burner comes equipped with a rugged cast iron grate that spreads heat evenly and helps provide quick temperature recovery. The rear grate can hold a stock pot that is 14" in diameter. Plates or pans can be set on the 4", stainless steel front rail. The oven produces 35,000 BTUs and has a snap action thermostat range of 175 to 550 degrees Fahrenheit. Heat is evenly distributed in the oven cavity because of the U-shape of the burner. If the pilot light goes out, gas stops flowing because of the flame failure safety device (oven only). The cavity is insulated with rock wool that is self-supporting. There are two position rack guides with one removable rack on the inside of the oven. The entire Southbend S36D S-series range is heated with gas.
Product Details
- Heated by gas
- 6 no-clog, 24,000 BTU, cast iron burners
- Heavy-duty, cast iron grates evenly spread heat
- Rear grates accommodate stock pots up to 14" in dia.
- Stainless steel sides, front, and shelf that is removable
- Removable crumb trays located underneath burners make for easy cleaning
- Metal control knobs include a red stripe so operators can easily identify and adjust burner settings
- Front, sides, and flue riser shelf are constructed with long-lasting stainless steel
- 4" front rail provides a landing for plating food and resting pans
- Lower valve panel is hinged for easy access to gas valves
- 6" adjustable legs make it easy to install range evenly on the floor
- Factory-installed pressure regulator for safety and consistent gas flames
- cCSAus, CSA-Gas, and CSA-Design listed; NSF certified
Oven Features
- Up to 35,000 BTUs heat input
- Snap action thermostat with 175-550 degrees F temperature range
- Heavy-duty, "U"-shaped oven burner provides even heat distribution
- Oven interior is fully enameled for corrosion resistance, easy cleaning, and even temperature distribution
- The top and 4 sides of oven cavity are insulated with dense, self-supporting rock wool
- Safety device cuts off the flow of gas in the event that the pilot flame goes out
- One removable oven rack is included and adjustable on two positions
S-Series Restaurant Range, gas, 36", (6) 28,000 BTU open burners, (1) standard oven, snap action thermostat, removable cast iron grate tops & crumb drawer, hinged lower valve panel, includes (1) rack, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 203,000 BTU, CSA, NSF
Overall Dimensions:
Left to Right: 36-1/2"
Front to Back: 34"
Height: 59-1/2"
Oven Interior Dimensions:
Left to Right: 26"
Front to Back: 26-1/2"
Height: 14"
